STATIONARY OVER-BOARD MOUNT
Diversimount™
A clean, fixed mount over your existing board.
Overview
A universal, cost effective “one-for-all” stationary mount system for classroom or boardroom supporting Interactive Flat Panel displays and our Diversiboard for Interactive Projection.
Quick Facts
| DISPLAY SIZE | Up to 86″ diagonal |
| WEIGHT CAPACITY | Up to 250 lb |
| PROFILE | 4″ from wall |
| COMPATIBILITY | VESA up to 800 × 600 |
| MATERIAL | Powder-coated steel |
| WARRANTY | 5-year limited |
Diversimount™ Documentation
Proudly made in Indianapolis, IN
The Mount
Designed for your existing environment

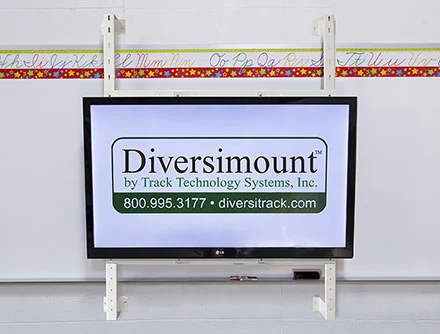

A single-piece steel bracket holds your display flat and close to the wall over the existing board. No sag, no wobble — just a clean, permanent mount for rooms where the display stays put. Clears a standard dry erase pen tray and is height adjustable up to 10 inches after fastening to your wall.
The install
Fastens above and below your existing chalk board
Diversimount™ was designed to cut install time with fastening locations that conform to the stud locations on your wall.

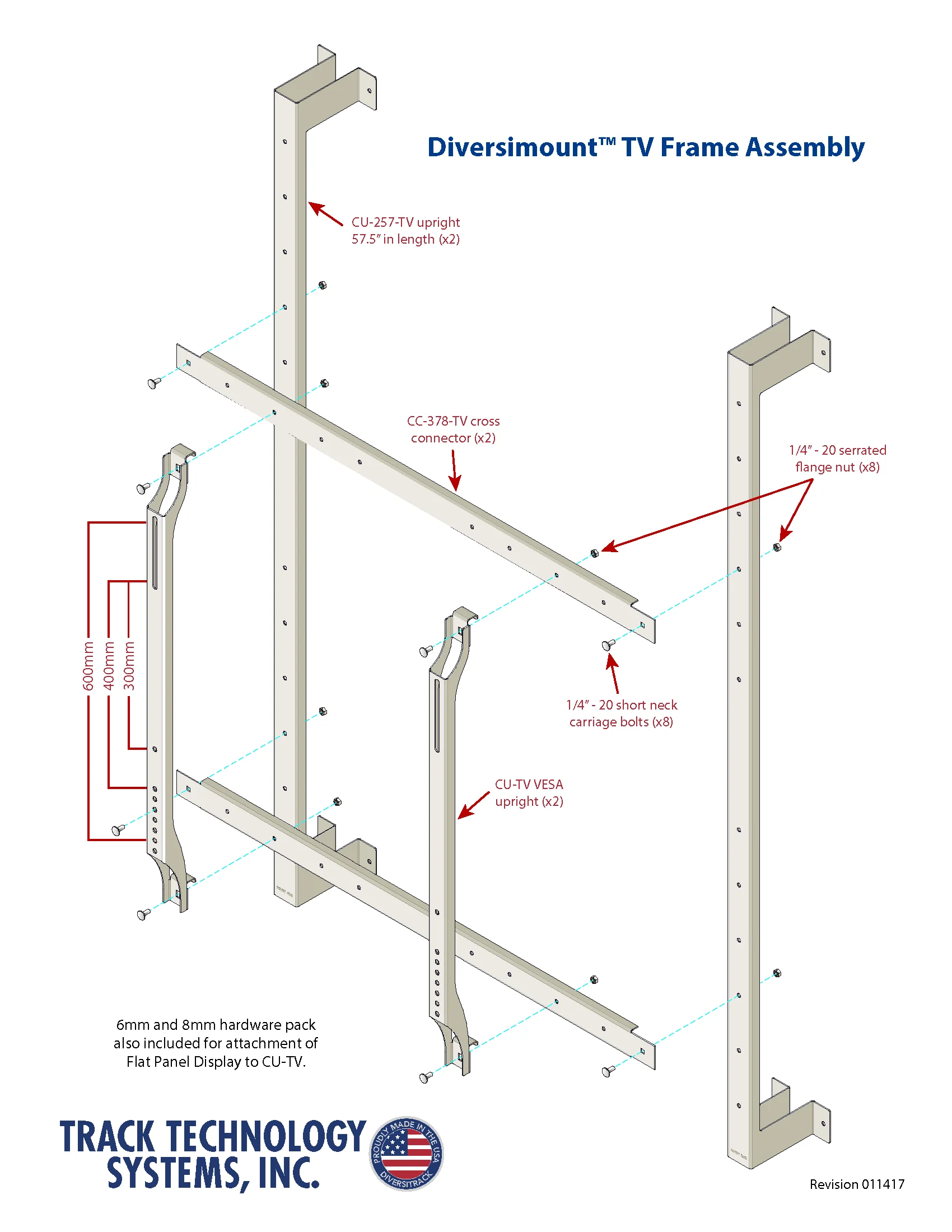

How it works
Click on the image to see a larger version
